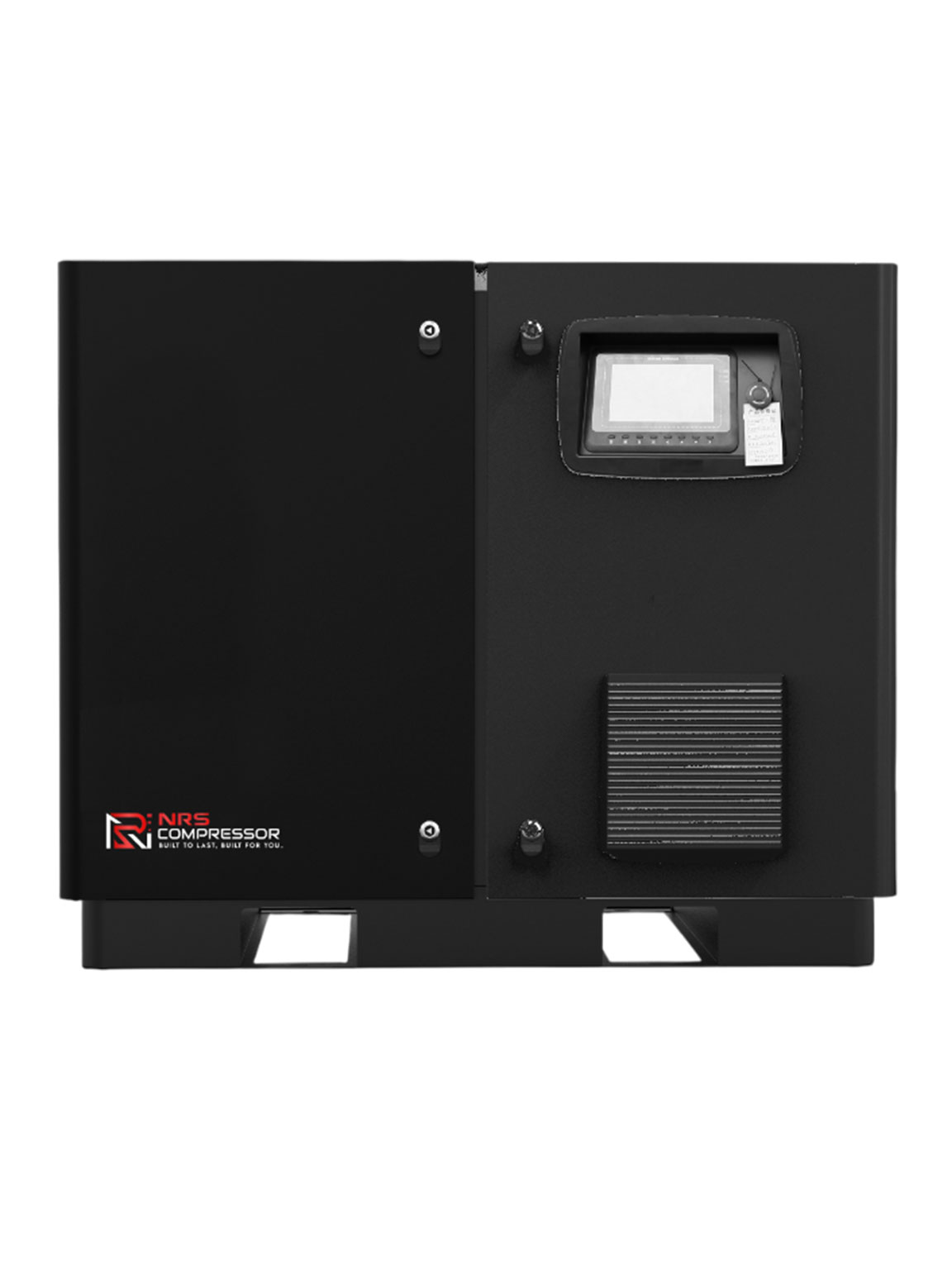

Direct Drive With PM MOTOR VFD

Permanent magnet variable frequency screw air compressor

Features

• Compared with ordinary three-phase asynchronous motors, high-efficiency permanent magnet motors can save about 6-7% energy, with integrated shaft structure, compact and stable, and high energy efficiency.
• The drive efficiency of the coupling free device is 100%, the pressure is stable, energy saving and quiet, and the heat dissipation is fast.
• Coaxial integrated structure has no loss, reduces vulnerable parts, 100% rotation rate, direct drive coaxial integrated design, dustproof and soundproof cotton, 65 decibels, protection level IP55, waterproof and dustproof

Industry Pain Points

• If you're still worried about the high electricity bill.
• If you are still thinking about how to reduce life cycle cost of your air compressors.
• If your are still struggling with which air compressors to choose.

Energy Saving More than one area

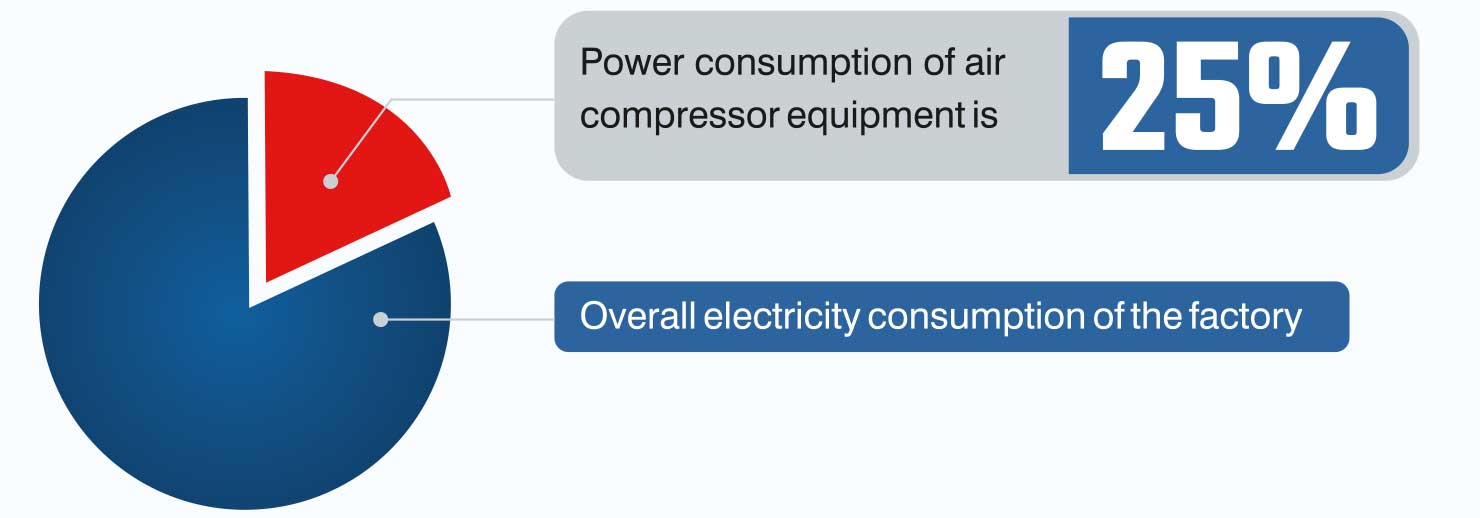

Generally, air compressor equipment accounts for 25% of the total electricity of the enterprise. Therefore, the selection of energy-saving air compressor will help to reduce operating costs of your compressed air systems.

Compressors Advantages

• FOCUS ON THE INDUSTRY AND BE CONSISTENT
  NRS Compressors focuses on continuous research and development of high quality products to meet industries requirements & expectation.
• ADVANCE TECHNOLOGY AND EXCELLENT QUALITY
  NRS Compressors uses state of the art manufacturing technology to ensure energy-saving, better quality, more reliable & durable Products.
• SAVE ENERGY CONSUM-PTION, REDUCE COST AND INCREASE EFFICIENCY
  Intelligent control system and automatic load/unload adjustment system ensure that the air compressor can be turned on according to demand, run according to requirements and achieve remarkable results in energy saving and cost reduction.
• COMPACT STRUCTURE INSTALLATION AT WILL
  The product has the advantages of compact structure, small size and low noise, and can be installed in any area of the factory area.
• EASY & FAST INSTALLATION
  The product leaves the factory full of compressor oil, installed in place to turn on the power supply, and can be put into operation; the LCD screen has its own back light to clearly show the running status of the machine.

Technical Specifications

Sr. No	Model	Max Pr.- Bar	FAD (CFM)	Tank (LTR)	HP
1	NRS-PMVSC-20	8,/10	87/77	NA	20
2	NRS-PMVSC-30	8,/10	122/115	NA	30
3	NRS-PMVSC-40	8,/10	179/165	NA	40
4	NRS-PMVSC-50	8,/10	226/209	NA	50
5	NRS-PMVSC-60	8,/10	249/240	NA	60
6	NRS-PMVSC-75	8,/10	347/318	NA	75
7	NRS-PMVSC-100	8,/10	475/440	NA	100
