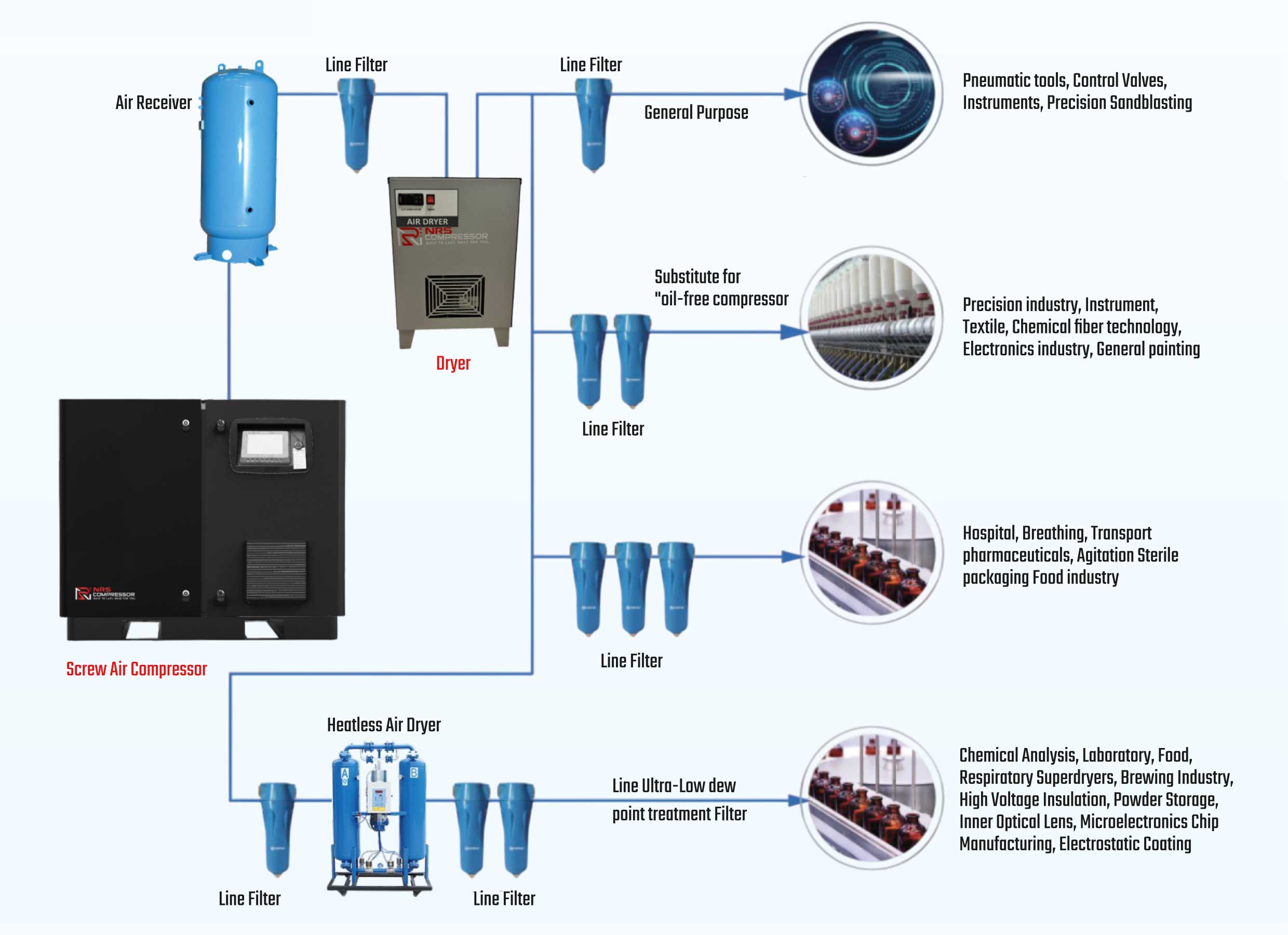

Refrigerated air dryers work by lowering the air temperature to around 3°C or 35°F. When the air reaches this temperature (the dew point), the moisture in the air condenses and is then removed through drainage.
| Sr. No | Model | Max Pr.- Bar | FAD (CFM) |
|---|---|---|---|
| 1 | NRS-RD-002 | 12 | 20 |
| 2 | NRS-RD-004 | 12 | 40 |
| 3 | NRS-RD-006 | 12 | 60 |
| 4 | NRS-RD-008 | 12 | 80 |
| 5 | NRS-RD-010 | 12 | 100 |
| 6 | NRS-RD-012 | 12 | 125 |
| 7 | NRS-RD-015 | 12 | 150 |
| 8 | NRS-RD-020 | 12 | 200 |
| 9 | NRS-RD-025 | 12 | 250 |
| 10 | NRS-RD-030 | 12 | 300 |
| 11 | NRS-RD-035 | 12 | 350 |
| 12 | NRS-RD-040 | 12 | 400 |
| 13 | NRS-RD-050 | 12 | 500 |
| 14 | NRS-RD-060 | 12 | 600 |
| 15 | NRS-RD-070 | 12 | 700 |
| 16 | NRS-RD-075 | 12 | 750 |
| 17 | NRS-RD-080 | 12 | 800 |
| 18 | NRS-RD-090 | 12 | 900 |
